The
new wheelchair trailer
MT03
designed
to facilitate movement for people in wheelchairs.
You
won't need to push the stroller with your hands, the motor in the standard
trailer will allow you to reach a speed of up to 30 km/h.
ENGINE
New wheelchair
trailer with 48V 800W engine. You will reach a speed of up to 30 km/h just by
turning the accelerator knob.
BATTERY
The
12Ah lithium-ion battery weighs only 3.5 kg.
The
battery can be easily removed for charging and transported separately. The
battery can be charged from an ordinary electrical outlet.
Battery
charge/discharge requirements can be observed in the box on the battery.
Battery
charging time - 4-6 hours. You can travel up to 50 km with a fully charged
battery.

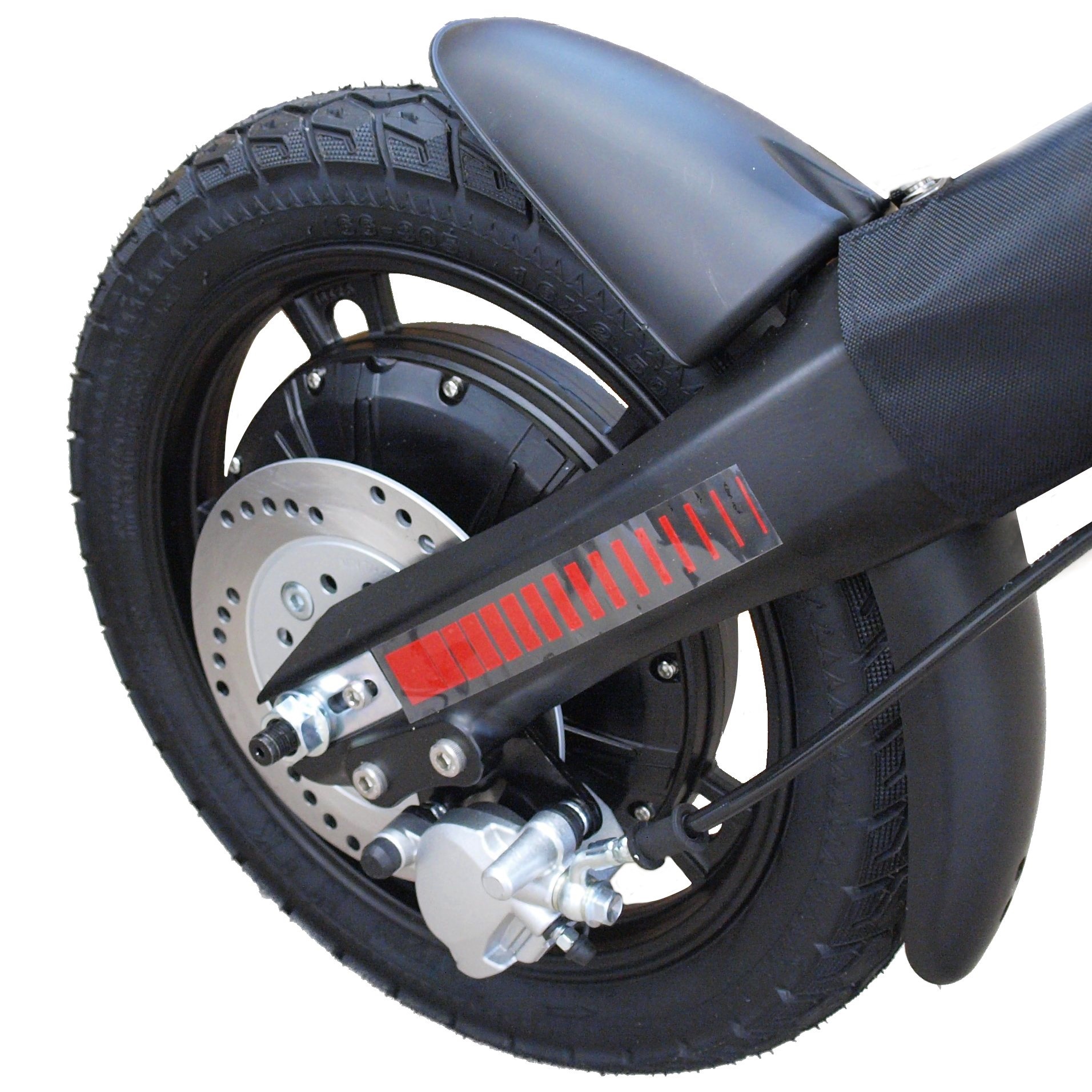

WHEEL
The wheelchair
trailer engine is built into a 16-inch wheel.
BRAKES
Manual
locking brakes will prevent the cart from moving once the wheelchair trailer
engine has been turned on. The brake levers are mounted on the steering wheel.
Disc brakes are installed in the wheelchair trailer.
STEERING WHEEL
Easily
adjustable handle height. You can adjust the height of the steering wheel to a
height that is convenient for you.
FRAME
The wheelchair
trailer is made of aluminum - you can easily load/unload/attach it.
ATTACHING THE WHEELCHAIR TRAILER
The wheelchair
trailer is attached to the frame of the cart with clamps.
The
clamps are attached separately from the wheelchair trailer - first they are
attached to the trolley and then to the wheelchair trailer.
The
clamps expand up to 52 cm - suitable for strollers of various widths.
The
clamp lock will ensure that the stroller will not start moving until you have
attached it correctly.

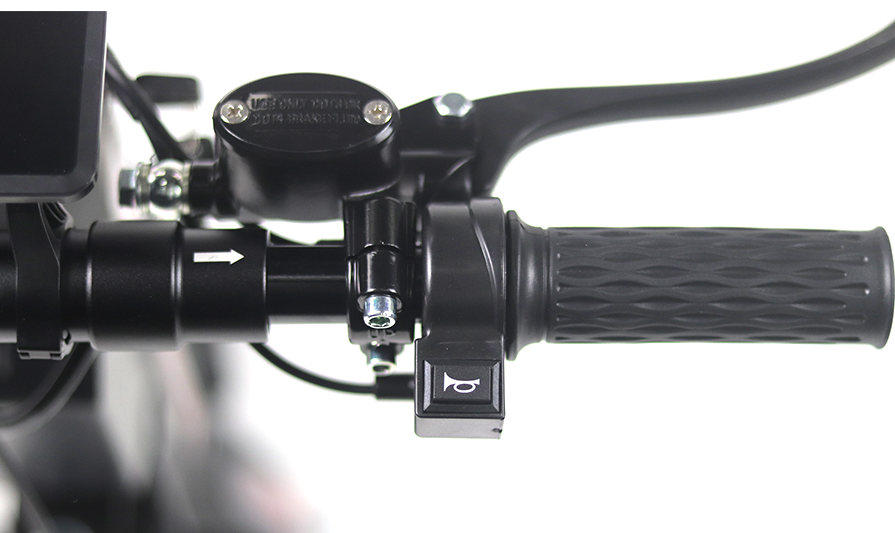

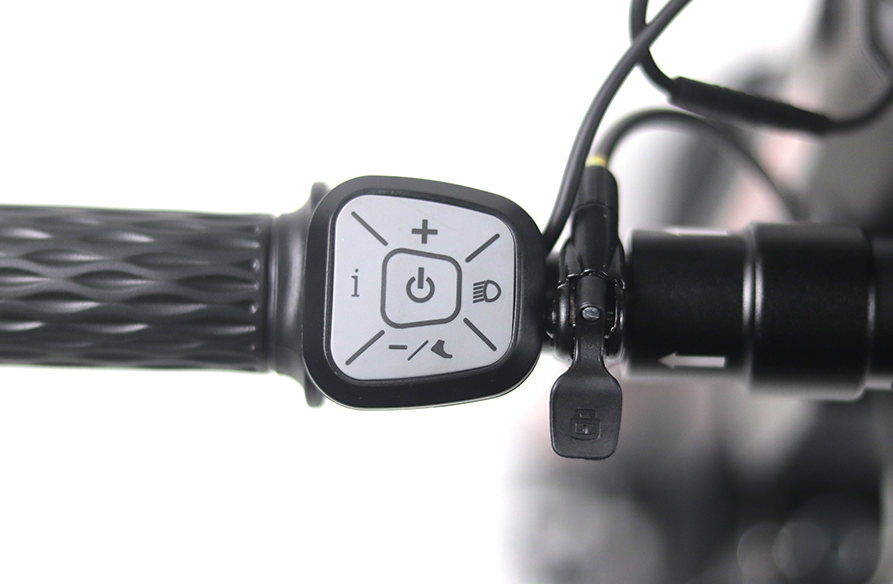

MANAGEMENT
The wheelchair
trailer is controlled using the handles on the steering wheel.
SPEEDS
The wheelchair
trailer has three speeds and a reverse gear:
Speed
1 - up to 6 km/h;
Speed
2 - up to 15 km/h;
Speed
3 - up to 30 km/h;
Reverse
gear - up to 6 km/h.

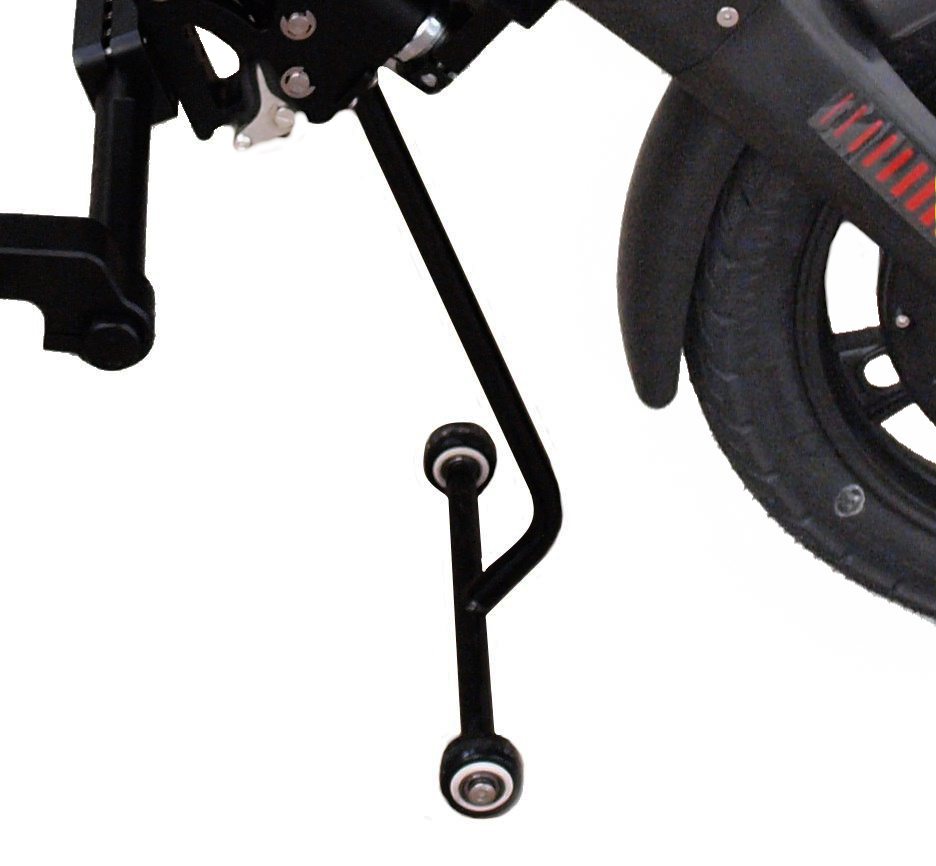

ADDITIONAL WHEELS
The
castors will facilitate the use of the wheelchair trailer when it is
disconnected from the cart or to conveniently remove/install the battery, or
simply leave it until the next ride (they will then perform the function of a
parking leg).
TRANSPORTING
Perfect
for transporting by car - it takes up very little space:
Width
only 28 cm (with folded handles and removed terminals);
Height
112 cm;
Weight
22 kg (including battery).
CHARACTERISTICS
Motor:
48 V, 8000 W wheel brushless motor;
Battery:
lithium-ion, 48V 12 Ah, 3.5 kg;
Frame:
aluminum alloy;
Width:
28 cm (with folded handles and removed terminals);
Height:
112 cm;
Driving
distance between charges: up to 50 km;
Weight
(with battery): 22 kg;
Maximum
speed: 30 km/h;
Charging
time: 4-6 h;
Recommended
driver weight: up to 120 kg;
Brakes:
disc, manual;
Tire
size: 16*2.5;
Steering
wheel: folding knobs;
Cruise
control: Yes;
Audible
signal: Yes;
Lights:
LED headlight;
Screen:
LCD005.
